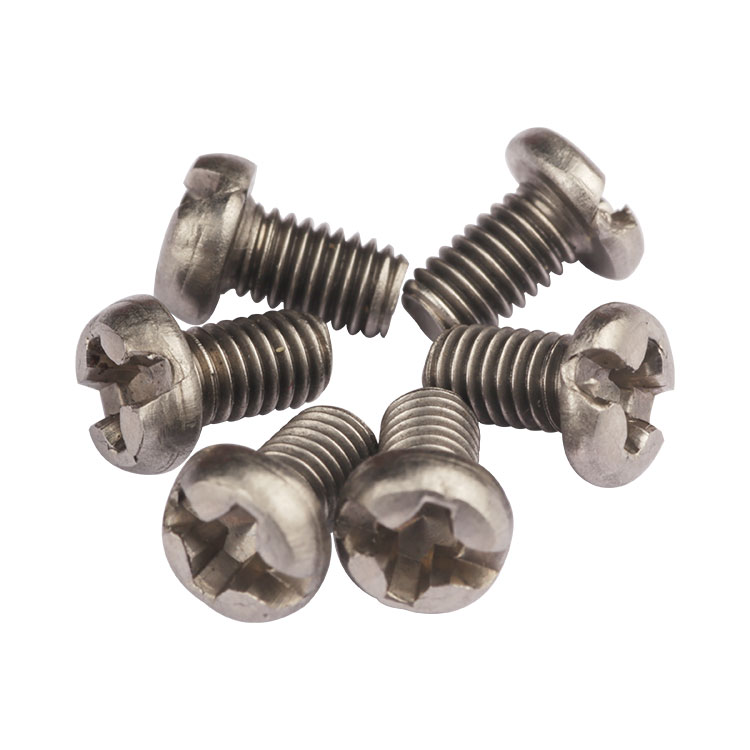

Type:SS Pan Head Screw, Combination Phillips and Slot Drive, Full Thread
Materials:Stainless Steel
Surface treatment:Plain (cleaned and passivated, no applied coating)
Head Type:Pan Head (domed top, flat annular bearing face, small fillet into the shank)
Drive:Combination recess - Phillips cross plus one straight slot across the full head diameter
Thread:Machine thread, rolled 60 degree, full to the head bearing face
Point:Blunt with a small chamfer; no taper, no drill point
Forming:Single-die heading, thread rolling, cleaning and passivation, sorting
Size:M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M14
Number:518
We manufacture SS pan head screws in stainless steel with a combination Phillips and slot drive, a machine thread rolled full to the bearing face and a blunt chamfered point, quoted from M1 to M14. Head diameter, recess, thread and length are taken from your drawing.
Watch the factory video·Email sst@szsst88.com
ISO 9001:2015 · Manufacturing since 1998 · 8,678+ customers · 89 countries and regions
Made to order – there is no stock catalogue. Each part is produced to your drawing, and production starts after drawing review and first-article approval.
An SS pan head screw is a stainless steel machine screw with a domed head on a flat annular bearing face, a thread rolled full to the head, and a blunt chamfered point. The recorded item on this page is stainless steel, cleaned and passivated with no applied coating, combination Phillips and slot drive, quoted from M1 to M14 with Number 518.
SS means stainless. The protection comes from the alloy rather than from a coating, so there is no plated layer to chip at an edge and no film to fill the recess. The grade is fixed on the drawing, and the certificate follows the batch.
Pan head. A low dome over a flat annular ring. The ring is the working surface: it sits on the panel and carries the clamp load, while the dome above it keeps the head from being taller than it needs to be.
Combination drive. A Phillips cross with a straight slot cut across the head, so one SS pan head screw can be driven with either a PH bit or a flat blade. On stainless the recess also matters for another reason: a bit that slips on a hard, work-hardening alloy is more likely to damage the head than on a plated steel part.
Blunt point. The end is chamfered, not tapered and not pointed. That is what makes it a machine screw: it goes into a tapped hole, a nut or a threaded insert, and it is not meant to cut its own thread in sheet or timber.
Together these decide the joint: the thread matches the tapped hole, the pan head bears on the panel over a defined ring, the combination drive takes the tool at hand, and the stainless body lets the SS pan head screw sit outdoors or in a wash-down area without a coating.
The body is stainless wire, with grade and heat number recorded on the batch. The head is upset in a single heading stroke, which forms the dome and the flat bearing ring together, and the recess is formed in the same stroke so that the cross and the slot stay concentric with the shank.
Under the head there is a small fillet where the dome meets the shank. On any pan head screw that fillet is where bending stress concentrates, and on stainless it is also where the heading operation leaves the most work in the metal. It is formed by the die and checked on the first article rather than polished afterwards, because polishing a fillet changes the section that carries the load.
The thread is rolled from the point up to the bearing face, so there is no plain shank anywhere on the part. Rolling keeps the grain continuous through the thread root, and on stainless it also work-hardens the flank, which is part of why a rolled SS pan head screw holds up in repeated assembly better than a cut one.
The point is turned blunt with a small chamfer. A chamfer lets the first thread enter a tapped hole without catching on the lead-in, and a blunt end stops the screw from being used where a tapping or drilling point would be expected. If the drawing asks for a taper or a drill point, that is a different part and it is quoted as one.
Cleaning and passivation come last. Passivation removes free iron left by heading and rolling so the passive layer can rebuild, and because there is no coating afterwards, the thread dimensions that are gauged are the dimensions that ship.
The family is quoted from M1 to M14, with M1, M2, M3, M4, M5, M6, M7, M8, M9, M10 and M14 in the recorded range. Custom lengths up to 2,000 mm are subject to DFM review after drawing submission; for an SS pan head screw the practical range is set by the head-to-shank ratio and by how a long thin stainless shank behaves in the rolls, not by the header.
| Item | How it is defined | What we control |
|---|---|---|
| Thread | Metric machine thread, coarse pitch for the size | Gauged per batch in the shipped condition |
| Head diameter | Close to twice the thread diameter | Checked on the projector on the first article |
| Head height | About 0.6 times the thread diameter | Measured from the bearing face |
| Bearing face | Flat annular ring under the dome | Flatness checked on the first article |
| Fillet | Small radius into the shank | Formed by the die; checked on the section |
| Recess | Phillips cross plus a slot across the head | Checked with a PH bit and a flat blade |
| Point | Blunt with a small chamfer | Checked on the first article |
| Length | From under the head to the tip | Measured on the shop plate |
At close to twice the diameter, an M4 SS pan head screw carries a head around 8 mm across and about 2.4 mm high. That height is the figure to watch on a recessed panel: a counterbore that is 2 mm deep will not take a pan head, and the drawing has to state the depth or the head will stand proud.
Length is measured from under the head, and the usable thread is the full length. In a blind tapped hole the thread depth has to be at least the screw length minus the panel thickness, and both numbers belong on the drawing so the screw cannot bottom before the head bears.
Two features separate this SS pan head screw from the plain Phillips version of the same head, and both of them are about what happens in service rather than at the bench.
| Feature | What it gives the joint | Where it costs something |
|---|---|---|
| Combination cross and slot | Either a PH bit or a flat blade will drive it | Less material in the recess than a pure cross |
| Full thread to the head | Engagement over the whole length | No plain shank to clear a second layer |
| Blunt chamfered point | Starts cleanly in a tapped hole | Not for sheet metal or timber |
| Stainless body | No coating to chip or fill the recess | Galling risk against stainless |
| Pan head ring | Defined bearing area on the panel | Taller than a countersunk head |
The combination recess is the practical one. On a stainless part, a stripped recess is expensive to deal with because the head is hard and the usual extraction tricks do not work as well; having a slot behind the cross means a damaged cross is not the end of the joint. The slot is cut across the full diameter, so a thin flat blade has real purchase.
The cost is inside the recess. A cross with a slot through it has less material at the corners than a pure cross, so the bit has to fit. On these sizes the driver should be a PH1 for M3 and M4 and a PH2 from M5 up, and the first article is driven at the joint torque with the driver the customer uses. If the recess deforms before the joint is tight, the answer is a larger recess or a lower torque, not a longer lever.
The blunt point is often the reason a part is specified at all. A pointed screw dropped into an assembly can start its own thread in a plastic boss or a thin sheet and pull the joint out of line; a blunt SS pan head screw will only go where there is a thread waiting for it.
There is no coating on this part, so the surface treatment is a decision about the alloy and about cleanliness, not about a film thickness. The thread is gauged as it ships, and the part can be re-cleaned later without changing its dimensions.
| Option | What it does | Where it suits | What to state on the drawing |
|---|---|---|---|
| 304, cleaned and passivated | General corrosion resistance, no coating | Indoor and general outdoor work | Grade and passivation |
| 316, cleaned and passivated | Molybdenum addition for chloride exposure | Coastal, marine and wash-down areas | Grade and passivation |
| 304, satin bead blast | Even matte face that hides marks | Visible panels | Grade plus blast finish |
| 316, electropolished | Levels micro peaks, stronger passive layer | Hygienic and chemical service | Grade plus electropolish |
| Dry film on the thread | Reduces galling in stainless-to-stainless joints | Repeated assembly of the same joint | Film and where it is applied |
Galling is the one problem that catches buyers out on stainless. Two clean stainless threads can weld themselves together under load, and the joint seizes before it is tight. The usual answers are a dry film on the thread, a different alloy pairing, or a lower torque with more threads engaged; the choice is made on the drawing because it changes the part.
Passivation is not a cosmetic step. Heading and rolling leave embedded iron on the surface, and if it is not removed the part rusts in a pattern that looks like a material fault. Every batch is passivated after the thread is rolled and before the parts are packed, and the batch record carries the treatment alongside the heat number.
Three environments where a stainless pan head with a combination drive earns its place:
| Where it sits | The screw fixes a bracket, a rail fitting or a panel to a frame that is exposed to weather, with the head on the outside face. |
| When it goes wrong | A plated screw rusts at the head and stains the panel below it, and a head that is too tall collects water and dirt. |
| Why it happens | The joint is outdoors, the grade has to resist chlorides, and the fixing is visible. |
| What we control | Grade confirmed against the exposure, passivation batch recorded, and the head checked on the first article. |
| Where it sits | The screw holds a cover, a guard or a bracket on equipment that is cleaned with water or chemicals between runs. |
| When it goes wrong | Crevices under a coated head trap residue, and a coating that breaks down leaves bare steel in a wet joint. |
| Why it happens | The part is washed regularly, the joint is opened for cleaning, and the surface has to stay intact. |
| What we control | Grade and surface agreed on the drawing, passivation recorded, and the bearing face checked for flatness. |
| Where it sits | The screw closes a junction box, fixes a gland plate or holds an instrument bezel, often into a tapped insert in thin sheet. |
| When it goes wrong | A pointed screw started in the wrong place cuts into a cable gland area, and a head that is too tall fouls a door or a cover. |
| Why it happens | The enclosure is thin-walled, the space is tight, and the joint is opened in service. |
| What we control | Blunt point, head height and recess checked, and the drive tried with both tools. |
Four reasons that matter on a stainless screw, each tied to what the drawing has to prove:
|
Grade and drive reviewed before tooling
The stainless grade, the recess and the head ratio are reviewed together, so a combination drive that is too small for the head is raised before the die is cut. Basis: Grade, head and recess reviewed as one set. |
Head, recess and thread in one route
The pan head, the combination recess and the fillet are formed in one stroke, then the thread is rolled to the bearing face on the same machine. Basis: One route from wire to passivated screw. |
|
Recess and thread checked on the part
The recess is driven with a PH bit and a flat blade on the first article, and the thread is gauged per batch in the shipped, uncoated condition. Basis: First article driven with both tools. |
First article to repeat production
At the first article the drawing revision, wire heat, die set and thread roll are recorded, and that record governs repeat orders. Basis: First article signed off before the batch is released. |
Shi Shi Tong forms these SS pan head screws on a single-die header that upsets the domed head, the bearing ring and the combination recess in one stroke, then rolls the machine thread from the chamfered point to the bearing face. The parts are cleaned and passivated. The first part of every run is measured on the head diameter, the head height and the recess, and driven at the joint torque, before the batch continues.

|
|
Stainless is less forgiving in the die than carbon steel. It work-hardens, so the heading stroke and the die radius are set for the grade, and the rolls are changed with the head when the size changes. The recess insert is changed at the same time, which is why a change of drive never drifts away from a change of head.
What decides whether an SS pan head screw passes is the head diameter and height, the flatness of the bearing ring, the recess, the fillet, the thread and the surface. The inspection agreement covers those, and the criteria come from the drawing.
Head and shank on the projector |
Thread gauged per batch |
Hardness testing against the property class |
Salt-spray testing of the passivated part |
Because there is no coating, the thread gauge is the only check between the rolls and the customer, and every batch is gauged. On stainless the gauge also shows up a worn roll early: the flank wears differently in a hard alloy, and the first sign is a NO-GO that starts to pass.
The recess is checked by driving, not by looking. A bit that fits on the bench but cams out under load leaves a mark that only shows after assembly, so the first article is driven at the joint torque and the head is inspected afterwards for deformation at the cross corners.
Every shipment of SS pan head screws is traceable to the wire it was made from. The grade and heat number are recorded on the material certificate supplied with the parts, and the inspection records follow the criteria agreed on the drawing.
ISO 9001:2015 |
RoHS test report |
Registered trademark |
Patent: security screw and driver |
With each batch we supply the material certificate, the inspection record for the criteria on the drawing and, where it is listed, the third-party report for the material or the surface condition. The documents carry the drawing revision and the batch number, so the paperwork can be matched to the parts.
More than 8,678 customers in 89 countries and regions have ordered from Shi Shi Tong; 87% of orders come from repeat customers and 56% through referrals. Most projects follow the same route: drawing review, first-article approval, then batches checked against that sample. On a stainless part the first article is also where the grade is confirmed, because a substitution shows up later as staining rather than as a dimension. Buyers visit during the process to review samples and to see how the heads are formed.
|
8,678+
customers served
|
87%
of orders from repeat customers
|
56%
of orders through referrals
|
89
countries and regions shipped to
|
Buyers and quality engineers visit for sample review, process discussion and supplier audits; the visit is arranged around production so the header and the finishing line can be seen on the day the parts run.
Customer group visit – sample review |
Customer group visit – process discussion |
Customer group visit – factory tour |
Customer visit – project kick-off |
Danish customer – drawing review |
Industry exhibition – meeting customers |
Long Thin Screws: Drawing and Manufacturing Requirements
What to put on the drawing for long, thin parts: datum, shank, thread position and handling.
|
How Long Does It Take to Customize Extra-Long Screws?
Where the time goes in a custom long-screw order, from drawing review to first article.
|
|
M6 Pan Head Hex Socket Machine Screws
Socket-driven pan head screws up to 630 mm with a partial thread.
|
Partial Thread Machine Screws
Partial-thread machine screws with a defined plain shank.
|
Countersunk Socket-Slotted Screws with Locking Patch
Sunk heads with a combined socket-slot drive and a nylon locking patch.
|
|
Custom Extra-Long Machine Screws
Family page: mixed heads, drives and finishes up to 2,000 mm.
|
Extra-Long Low-Profile Phillips Screws
Low heads with a PH recess for recessed covers and black chassis panels.
|
Extra-Long Hex-Head Dacromet Screws
Long hex-head screws with a Dacromet coating for wet or outdoor assemblies.
|
SS is stainless steel. The part is made from stainless wire and passivated, with no applied coating, so the corrosion protection comes from the alloy itself.
No. It has a blunt chamfered point and a machine thread, so it goes into a tapped hole, a nut or a threaded insert. A self tapping screw in the same head shape has a gimlet or a drill point.
It is a combination drive. The cross gives the strongest engagement and the slot is the fallback if the cross is damaged or only a flat blade is at hand.
304 covers general indoor and outdoor work. 316 is chosen where chlorides are present, such as coastal sites or wash-down equipment, and the grade is stated on the drawing either way.
Galling is stainless welding to stainless under load, which seizes the thread. A dry film on the thread, a different alloy pairing or a lower torque with more threads engaged are the usual answers.
Thread size and pitch, head diameter and height, drive, length and datum, point form, stainless grade, surface treatment, and the panel thickness and tapped depth it goes into.
