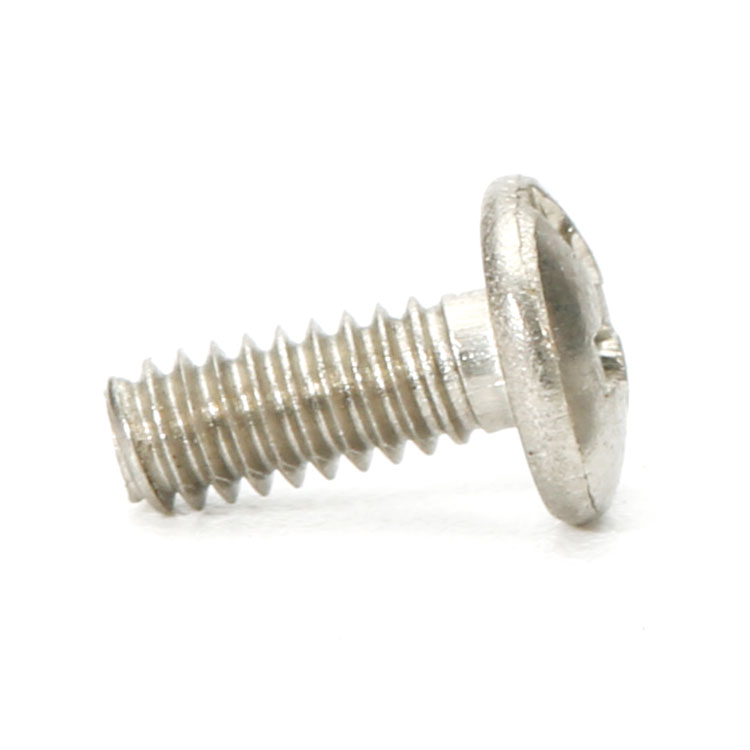

Type:Combo truss machine screw (combination drive)
Materials:Carbon steel
Surface treatment:Nickel plated
Head Type:Truss head
Size:M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M14
Drive:Combination Phillips and slot
Thread:Machine thread, right hand
Forming:Cold heading; thread rolled, then nickel plated
Number:85
We manufacture combo truss machine screws in carbon steel with a wide truss head, a combination cross-and-slot drive and a nickel finish, quoted from M1 to M14. Head diameter, drive, thread and plating are taken from your drawing.
Watch the factory video·Email sst@szsst88.com
ISO 9001:2015 · Manufacturing since 1998 · 8,678+ customers · 89 countries and regions
Made to order – there is no stock catalogue. Each part is produced to your drawing, and production starts after drawing review and first-article approval.
A combo truss machine screw is a machine screw with a wide, low truss head and a combination drive that accepts either a Phillips bit or a flat blade. The recorded item on this page is a carbon steel screw with a nickel finish and a machine thread, quoted from M1 to M14.
Truss head. A broad, shallow dome with a large flat bearing face. It covers more of the panel than a pan head at the same thread size, which is why it is used over oversized or slotted holes, on soft materials, and where the head has to spread the load without a washer.
Combo drive. A cross recess with a slot cut through it, so one screw can be driven with a Phillips bit on the line or a flat blade in the field. It is the pragmatic choice where the tool on the bench is not known in advance.
Machine thread. The thread engages a tapped hole, a nut or an insert, so the joint is designed around the mating thread rather than the screw forming its own.
Nickel finish. A hard, bright deposit that protects the steel and gives a silver tone close to stainless, which is why it is used on visible panels where the fastener should not read as a different metal.
Together these decide the part: the truss head covers and spreads, the combo drive matches whatever tool is available, the machine thread holds the joint, and the nickel keeps the steel bright. That is why a combo truss machine screw is specified by head diameter, drive, thread and finish together.
The body of this combo truss machine screw is carbon steel wire, with the grade and heat number kept with the batch record. The property class is fixed on the drawing, because it sets the torque the head can take and whether the plated part needs a bake after coating.
The truss head is formed in one heading operation, and its wide diameter is the reason the part exists. A head that is broad but thin has to be formed without thinning the edge, so the die is set to keep the dome and the bearing face even; a truss head that is uneven at the rim looks fine in a tray and rocks on a panel.
The combination recess is formed in the same operation. The cross and the slot share the same head material, so the walls between them are the thinnest part of the drive; the recess is formed rather than cut so those walls stay supported instead of being sliced through.
The machine thread is rolled over the full length. Rolling keeps the grain continuous and gives a smooth flank, and it leaves no burr at the end — which matters here because the truss head is often used over a slotted hole where a burr would catch on the panel edge.
The nickel is plated after the thread is rolled and the parts are cleaned. It adds a few microns to the head face, the recess and the thread, so the thread is gauged after plating and the recess is driven with both bits in its finished condition.
Combo truss machine screws of this type are quoted from M1 to M14; the recorded configuration covers that range in carbon steel with a nickel finish and a machine thread. Custom lengths up to 2,000 mm are subject to DFM review after drawing submission, because the thread and the head are set before the tooling is made.
| Item | How it is defined | What we control |
|---|---|---|
| Head diameter | The wide truss face that covers the panel | Checked on the projector on the first article |
| Head height | The shallow dome profile | Measured from the bearing face |
| Drive | Combination cross and slot | Checked with a PH bit and a flat blade |
| Thread size and pitch | The fit in the tapped hole | Gauged after plating |
| Length | From under the head to the tip | Datum stated on the drawing; measured on the shop plate |
| Coating thickness | The nickel film on the finished part | Checked on the sample and on the parts |
Each size is quoted against the hole it covers. The head diameter, the hole diameter and the panel thickness are reviewed together, because the truss head is usually chosen for a hole that is larger than the thread — a clearance slot, an oversized punch or a hole that has been redrilled.
Length is measured from under the head, and the head height is stated separately. On a truss head the dome is part of the overall height, and a drawing that gives only the length leaves the clearance above the panel undefined.
The truss head is a coverage feature. Its diameter is larger relative to its height than a pan head, so it bridges slots, oversized holes and soft materials where a smaller head would pull through. In practice that means the screw can be used with a punched hole that was never sized for it.
| Parameter | Why it matters on this part | What we control |
|---|---|---|
| Head diameter | Covers oversized and slotted holes | Set from the hole on the drawing |
| Head height | Low profile on a visible face | Measured from the bearing face |
| Bearing face flatness | Even contact, no rocking | Checked on the first article |
| Combo recess | Either PH or flat blade drives it | Checked with both tools |
| Thread class after plating | Fit in the tapped hole | Gauged per batch |
The combination drive is a compromise, and it is worth being honest about it. A cross-and-slot head has less material in the drive than either a pure Phillips or a pure slot, so it takes slightly less torque. What it buys is universality: the same screw works on a line with Phillips drivers and in a service kit with flat blades.
The two drives also fail differently. A Phillips bit cams out when the torque rises; a flat blade twists out of the slot and peens the edges. Because this head has both, the first article is driven with each tool in turn and checked on the same screw, not on two different ones.
The truss head and the machine thread work together on thin panels. The thread needs a tapped hole or a nut, and the head has to cover whatever hole the panel already has; on a thin sheet with a punched hole, that combination is what stops the head pulling through when the joint is tightened.
This combo truss machine screw is supplied nickel plated. The deposit is hard and bright, and it gives a silver tone close to stainless, which is why it appears on visible appliance and equipment panels where a yellow zinc screw would read as a different finish.
| Finish | How it protects | Effect on head and recess | Typical use |
|---|---|---|---|
| Nickel plated | Hard barrier layer, bright | A few microns; thread and recess gauged after | Visible panels and appliance hardware |
| Zinc plated | Sacrificial zinc layer | A few microns; gauged after | Indoor assemblies, low cost |
| Zinc nickel | Alloy layer, higher corrosion resistance | Thicker; thread re-checked | Wet or mildly corrosive service |
| Black oxide | Conversion layer plus oil | No build-up | Dark indoor parts |
| Stainless (equivalent part) | Alloy provides protection | No coating; as formed | Wash-down and outdoor work |
Nickel protects the surface it covers but it does not protect a scratch the way zinc does. On a truss head the exposed bearing face is the part that gets marked during assembly, so where the joint is outdoors or washed, the drawing should call for a zinc-based finish or a stainless part rather than nickel.
Packing protects the wide head faces and the recesses. The parts are bagged in counted quantities, labelled with the batch, the material heat and the drive type, and packed so the heads cannot rub, because a scuffed nickel head on a visible panel is a rejection.
Three assemblies where a wide head and a dual drive both earn their place:
| Where it sits | The screw closes a cover onto a panel where the hole is larger than the thread and the head has to cover it without a washer. |
| When it goes wrong | A pan head on the same hole pulls through, and a drive that needs a bit nobody has leaves the cover loose. |
| Why it happens | The hole is punched or slotted, the panel is visible, and the joint is serviced. |
| What we control | Head diameter checked against the hole, both drives checked with their tools, and the thread gauged after plating. |
| Where it sits | The screw fixes a bracket, a slide or a hinge plate where the head sits on a visible or lacquered surface. |
| When it goes wrong | A small head dents the board around the hole, and a slot-only drive twists out and marks the surface. |
| Why it happens | The joint is assembled by hand, the surface is finished, and the screw may be adjusted later. |
| What we control | Bearing face flatness checked and both drives tested, so the fitter can use whichever tool is at hand. |
| Where it sits | The screw closes a cover plate where the thread engages a tapped insert and the head has to cover the stamped opening. |
| When it goes wrong | A head that is too small leaves the punched edge showing, and a recess that strips leaves the cover insecure. |
| Why it happens | The opening is stamped, the cover is thin, and the joint is opened during inspection. |
| What we control | Head diameter and recess checked, and the thread gauged so the insert is not damaged on reassembly. |
Four reasons that matter on a wide-headed dual-drive screw, each tied to what the drawing has to prove:
|
Head diameter reviewed against the hole
The truss diameter, the hole and the panel thickness are reviewed before tooling, so a head that would pull through is raised first. Basis: Head, hole and panel reviewed before tooling. |
Head and combination recess in one route
The wide head and the cross-and-slot recess are formed in one heading operation, so the recess stays centred in the bearing face. Basis: One heading operation for head and drive. |
|
Both drives and the thread checked on the part
The recess is checked with a PH bit and a flat blade, the head face on the projector and the thread with gauges, on the first article. Basis: First article checked with both tools. |
First article to repeat production
The first article fixes the drawing revision, wire heat, die set and plating batch; repeat orders are compared against that record. Basis: First article signed off before the batch is released. |
Shi Shi Tong forms these combo truss machine screws on a heading machine that upsets the wide truss head and the combination recess in one operation, then rolls the machine thread and applies the nickel plating. The first part of every run is measured on the head face, driven with both tools and gauged on the thread before the batch continues.

|
|
Between runs the insert is changed to the drawing head and recess, and the thread rolls to the size; the first part goes to the projector, to both bits and to the gauges. Because the nickel is applied as a batch, the first plated part is driven before the rest of the run is packed, so a recess that has filled with film is caught early.
What decides whether a combo truss machine screw passes is the head diameter and height, the flatness of the bearing face, the recess in both drive configurations, the thread class after plating and the finish itself. The inspection agreement covers those, and the criteria come from the drawing.
Head profile and recess on the projector |
Thread gauged after plating |
Hardness testing against the property class |
Salt-spray testing of the plated part |
Each batch is recorded against the drawing revision: head and recess from the first article, the thread gauged after plating, and the drive type carried on the label. If either drive or the head check fails, the parts back to the last good setting are held and re-checked.
If the material or finish needs an outside test, the request is set at the drawing stage, and the report ships with the parts under the batch number.
Every shipment of combo truss machine screws is traceable to the wire it was made from. The grade, heat number and property class are recorded on the material certificate supplied with the parts, and the inspection records follow the criteria agreed on the drawing.
ISO 9001:2015 |
RoHS test report |
Registered trademark |
Patent: security screw and driver |
With each batch we supply the material certificate, the inspection record for the criteria on the drawing and, where it is listed, the third-party report for the material or the finish. The documents carry the drawing revision and the batch number, so the paperwork can be matched to the parts.
More than 8,678 customers in 89 countries and regions have ordered from Shi Shi Tong; 87% of orders come from repeat customers and 56% through referrals. Most projects follow the same route: drawing review, first-article approval, then batches checked against that sample. On a dual-drive part the first article is driven with both tools before it is approved, so the combination is signed off as a combination rather than as two separate features. Buyers visit during the process to review samples and to see how the heads are formed.
|
8,678+
customers served
|
87%
of orders from repeat customers
|
56%
of orders through referrals
|
89
countries and regions shipped to
|
Buyers and quality engineers visit for sample review, process discussion and supplier audits; the visit is arranged around production so the header and the plating line can be seen on the day the parts run.
Customer group visit – sample review |
Customer group visit – process discussion |
Customer group visit – factory tour |
Customer visit – project kick-off |
Danish customer – drawing review |
Industry exhibition – meeting customers |
Long Thin Screws: Drawing and Manufacturing Requirements
What to put on the drawing for long, thin parts: datum, shank, thread position and handling.
|
How Long Does It Take to Customize Extra-Long Screws?
Where the time goes in a custom long-screw order, from drawing review to first article.
|
|
M6 Pan Head Hex Socket Machine Screws
Socket-driven pan head screws up to 630 mm with a partial thread.
|
Partial Thread Machine Screws
Partial-thread machine screws with a defined plain shank.
|
Countersunk Socket-Slotted Screws with Locking Patch
Sunk heads with a combined socket-slot drive and a nylon locking patch.
|
|
Custom Extra-Long Machine Screws
Family page: mixed heads, drives and finishes up to 2,000 mm.
|
Extra-Long Low-Profile Phillips Screws
Low heads with a PH recess for recessed covers and black chassis panels.
|
Extra-Long Hex-Head Dacromet Screws
Long hex-head screws with a Dacromet coating for wet or outdoor assemblies.
|
It is a machine screw with a wide truss head and a combination recess that takes either a Phillips bit or a flat blade. This one is carbon steel with a nickel finish and a machine thread, quoted from M1 to M14.
Because the truss head is wider for its height, so it covers oversized, slotted or punched holes and spreads the load on soft or thin material without a washer.
Slightly, because the cross and the slot share the same head material. What it buys is that the same screw can be driven on a line with a Phillips bit or serviced in the field with a flat blade.
Yes. The thread is a machine thread and engages a tapped hole, nut or insert. A truss head with a self-tapping thread is a different part.
Nickel plating, which gives a hard bright silver surface suited to visible panels. For outdoor or wash-down joints a zinc-based finish or a stainless part is the better choice.
Head diameter and height, bearing face flatness, drive type and size, thread size and pitch, length and datum, material and property class, and finish.
How a combo truss machine screw project runs from drawing to repeat delivery:
|
1
Send the drawing or sample
|
→ |
2
Head, hole and drive review
|
→ |
3
First article with both tools
|
→ |
4
Batch production and repeat orders
|
Each step is confirmed with you before the next one starts; the drawing revision from the first article is what repeat orders are checked against.
For a quotation, send the drawing with the head diameter and height, drive type and size, thread size and pitch, length and its datum, material and property class, finish, and the hole the head has to cover.
|
Head diameter and height
|
Drive type and size
|
Thread size and pitch
|
|
Length and datum
|
Material and class
|
Hole to be covered
|
