Type:Pan Head Screw
Materials:Carbon Steel
Surface treatment:Eco Nickel plated
Head Type:Pan head
Drive:Phillips cross recess
Thread:Coarse self tapping thread
Point:Pointed, per drawing
Forming:Cold heading and thread rolling
Size:M1 M2 M3 M4 M5 M6 M7 M8 M9 M10
We make pan head screws in carbon steel with an eco nickel plate, a Phillips recess and a self tapping thread, quoted to the drawing. The forming thread pulls material toward the head, so the bearing face and the material it enters are agreed before the first article is driven.
Watch the factory video·Email sst@szsst88.com
ISO 9001:2015 · Manufacturing since 1998 · 8,678+ customers · 89 countries and regions
Made to order – there is no stock catalogue. Each part is produced to your drawing, and production starts after drawing review and first-article approval.

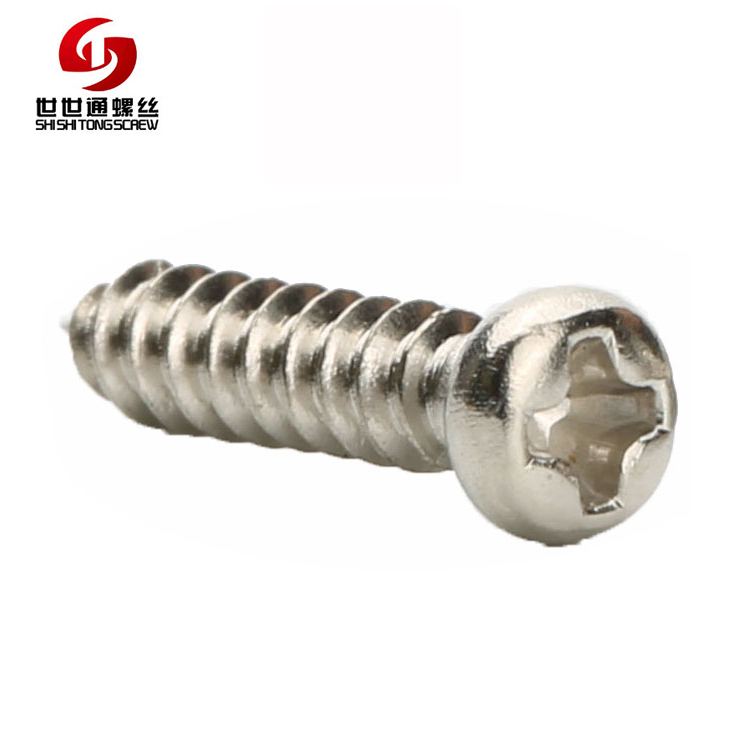

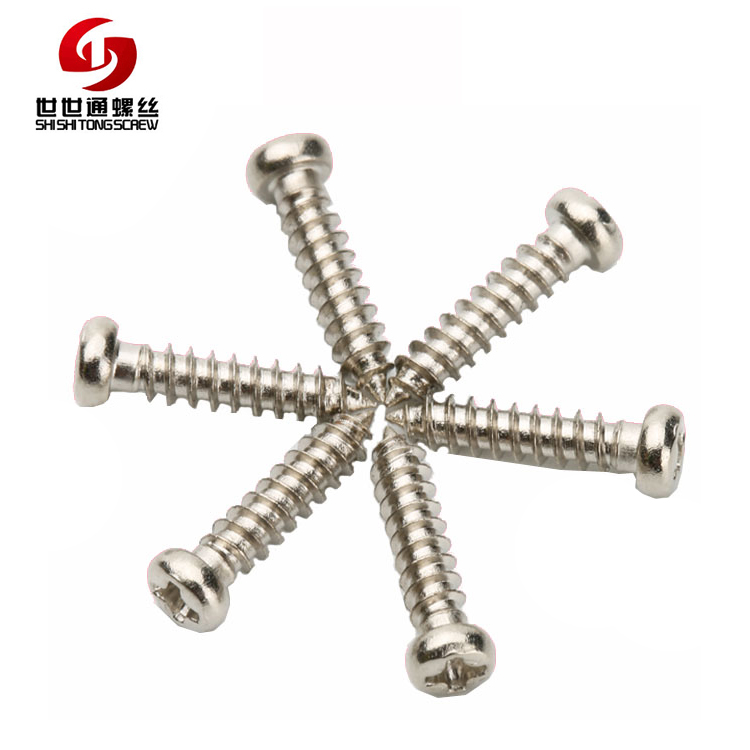

A pan head screw has a shallow domed top and a flat bearing face underneath, and on this page it carries a Phillips recess and a self tapping thread. The part recorded here is carbon steel with an eco nickel plate, quoted from M1 upward with the length made to the drawing.
Pan head. A dome shallow enough for a flat seat and high enough for a full-depth cross.
Self tapping thread. A coarse thread that forms its own thread in plastic or sheet.
Phillips recess. A cross recess driven with a standard bit, which slips at a defined torque.
They are used on panels, mouldings and small assemblies where the screw makes its own thread and the head has to hold the material flat. A pan head screw is the most common of the self tapping forms for that reason: the dome protects the drive and the flat underside spreads the pull.
A self tapping thread does not cut a clean channel; it displaces material as it forms the thread. Some of that displacement goes outward into the boss or the sheet, and some goes back toward the head as the thread works its way in. That second part is what makes the pan head matter: the head is what the material is pulled against.
On a solid plastic boss there is enough material around the hole that the displacement is absorbed, and the pan head simply presses on a flat face. On thin sheet the same displacement has nowhere to go, so the sheet lifts toward the head and forms a raised rim around the hole. The joint then looks tight while the panel is visibly deformed, and the deformation is permanent because the material has been worked.
The pan head’s flat underside is what distributes the pull. A larger bearing face spreads the same load over more material and delays the rim; a small head concentrates it and the rim appears sooner. That is why sheet assemblies often move to a washer head or add a plain washer, even though the pan head is the standard form.
Torque is the other control. A cross recess slips at a defined torque, which on a thin sheet is often the only limit that keeps the material from being worked further. Driving a self tapping screw with a key would remove that limit, and on thin sheet the result would be a deeper rim rather than a tighter joint.
The finish completes the part. Eco nickel plate gives a bright, hard surface with a thin film, so the cross keeps its depth and the bearing face stays flat, and the head suits visible hardware on small equipment.

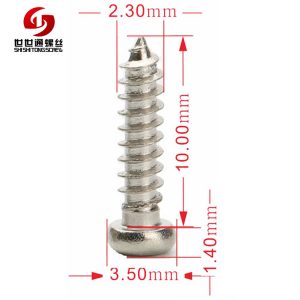

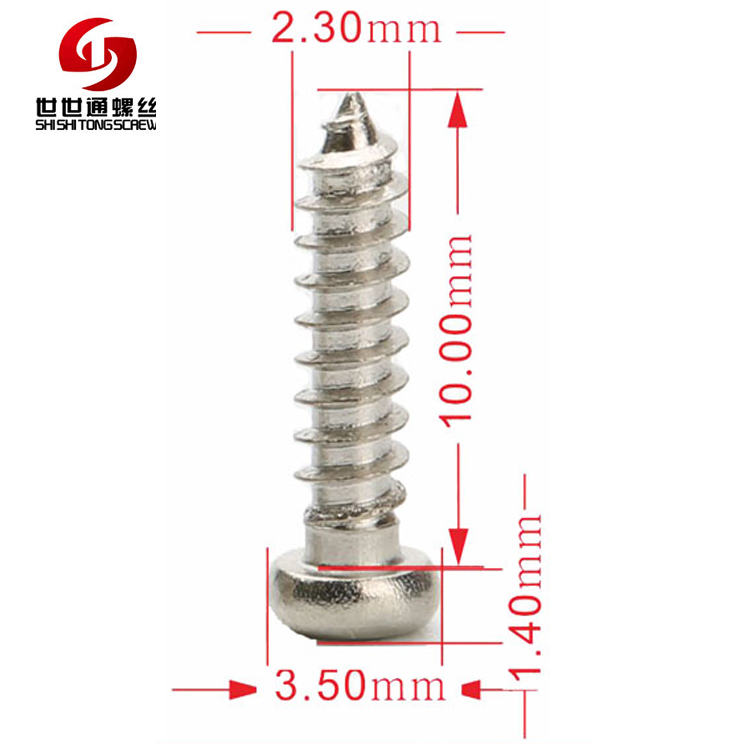

The part is quoted to the drawing with the head, the recess and the thread stated separately. Custom lengths up to 2,000 mm, subject to DFM review after drawing submission. The quotation for a pan head screw carries the head diameter and height, the recess, the thread and point, the length, and the thickness of the material it enters.
| Item | How it is defined | What we control |
|---|---|---|
| Head | Pan head | Diameter, height and bearing face |
| Recess | Phillips | Depth and width |
| Thread | Self tapping | Diameter, pitch and point |
| Material | Sheet or boss | Thickness and hardness |
| Bearing face | Under the head | Diameter and flatness |
| Torque | For the joint | Stated, with the material in mind |
The head diameter is the dimension that decides how the material behaves. A pan head sized for a solid boss is often too small for a thin sheet, where the same clamp lifts a rim.
The recess is limited by the head height, and the head height is what the drawing asks for. On a standard pan head there is enough height for a full-depth cross, which is why the drive is reliable at this size.
The thread and the material are agreed as a pair. A pitch that suits a plastic boss may be too coarse for thin sheet, and the point has to suit the material as well.
Four properties decide pan head screws of this form, and each one carries a cost:
| Property | What it gives | What it costs |
|---|---|---|
| Pan head | A flat bearing face and a full cross | Stands above the surface |
| Self tapping thread | No insert or tapped hole | Displaces material toward the head |
| Cross recess | A standard bit and a torque limit | Rounds when the bit is worn |
| Eco nickel plate | Hard, bright, thin film | No sacrificial protection at a scratch |
The value is a standard drive with a flat seat and a thread that makes its own way. On a panel or a moulding that is the cheapest joint that still looks finished.
The cost is that the material under the head is being worked by the thread, and on thin material that shows. The head size and the driving torque are what decide how much.
The recorded finish is eco nickel plating over carbon steel. It gives a bright, hard surface with a thin film, so the recess keeps its depth and the bearing face stays flat, and the part suits visible small hardware.
| Option | How it protects | Effect on head and thread | Typical use |
|---|---|---|---|
| Eco nickel | Hard bright barrier | Thin build; recess kept | Visible small hardware |
| Clear zinc | Sacrificial zinc | Build inside the recess | General indoor work |
| Colour zinc | Sacrificial zinc, tinted | Build; recess checked | Matched appliances |
| Black oxide | Conversion film, oiled | No measurable build | Dark mechanisms |
| Stainless, passivated | Passive film, no coating | No build; different material | Wet and food areas |
On a self tapping screw the plate is in the joint: it is the first surface the material meets, and a soft plate can be scraped off where the thread forms. A hard nickel plate holds up better at that interface than a soft zinc one.
The recess is the other place the plate matters. A heavy layer inside the cross changes which bit enters, so the recess is checked in the plated state rather than only on the bare part.
Three assemblies where the head holds thin material flat:
| Where it sits | The screw holds a thin cover to a frame, and the fixing is visible on the outside. |
| When it goes wrong | The panel lifts into a rim around the hole, or the finish marks at the head. |
| Why it happens | The head is small for the sheet, and the torque is not limited. |
| What we control | Head diameter and face checked; first article assembled on the panel. |
| Where it sits | The screw closes a moulded cover onto a boss that has no room for an insert. |
| When it goes wrong | The boss cracks, or the screw does not reach its seat. |
| Why it happens | The pitch is too coarse for the boss, and the hole is not sized for the material. |
| What we control | Thread and boss agreed; first article driven into the real boss. |
| Where it sits | The screw fixes a bracket or a plate where the joint is small and driven by hand. |
| When it goes wrong | The recess rounds out, or the joint loosens. |
| Why it happens | The bit is worn, and the plate is thinner than the head assumes. |
| What we control | Recess proved with the bit; first article tightened to the stated torque. |
Four reasons that matter on a head that has to hold material flat while the thread works under it, each tied to something the drawing or the first article proves. All four show in the sample.
|
Head and material stated
The quotation asks for the head diameter and the material it enters, because the same head behaves differently on a boss and on a thin sheet. Basis: Head and material agreed. |
Face finished flat
The bearing face is finished flat and inspected, because on a pan head that face is what spreads the pull from the thread. Basis: Face flatness controlled. |
|
Joint driven on the material
The first article is driven into the customer material at the stated torque, because the rim only appears there. Basis: Joint proved on material. |
Same limits on repeat runs
Head, recess and thread are recorded with the drawing revision, so a repeat batch behaves the same in the joint. Basis: Same limits across orders. |
These screws are cold headed from carbon steel wire, with the pan head formed and faced, the cross recess cut and the thread rolled; the parts are then nickel plated. The first piece of every run is measured on head diameter and height, face flatness, recess depth and width, thread and length.

|
|
The bearing face is the feature that decides how the head behaves on thin material. It is faced after the head is formed, and its flatness and diameter are checked: a face that is dished bears on its rim and concentrates the pull from the thread exactly where the sheet is weakest.
The recess is cut after the head is faced, so its depth is taken from the finished surface. On a pan head there is enough material for a full-depth cross, which is what gives the drive its defined slip torque on a self tapping screw.
The thread is rolled, and the parts are plated last. The recess is checked with the matching bit in the plated state, and a sample is driven into a sheet of the customer’s thickness to check the rim the head leaves.
What decides whether a pan head screw passes is the bearing face, the recess and the thread. The inspection agreement covers those, and the criteria come from the drawing.
Face and recess on the projector |
Thread gauged |
Core hardness checked |
Salt-spray testing where plated |
The head face is measured for diameter and flatness, and its edge is checked for a burr. On a panel joint the face is what leaves the mark, so a burr is a cosmetic and a functional defect at once.
The recess is measured for depth and width and checked with the matching bit. On a self tapping screw the recess is also the torque limiter, so a recess that holds the bit badly removes the protection the joint relies on.
The thread is gauged and a sample is driven into the customer material at the stated torque, then inspected for the rim around the hole. That test is the one that predicts how the panel will look after assembly.
Every batch of pan head screws is traceable to the wire it was made from and to the plating lot that finished it. The grade and heat number appear on the material certificate supplied with the parts, and the plating report carries the layer thickness and the lot number.
ISO 9001:2015 |
RoHS test report |
Registered trademark |
Patent: security screw and driver |
With each shipment we supply the material certificate, the inspection record for the dimensions on the drawing, including the head face and recess, and the plating report. The records carry the drawing revision and the batch number, so a repeat order of pan head screws behaves the same on the panel.
More than 8,678 customers in 89 countries and regions have ordered from Shi Shi Tong; 87% of orders come from repeat customers and 56% through referrals. Most projects follow the same route: drawing review, first-article approval, then batches checked against that sample. On a self tapping part the first article is driven into the customer material, because the rim only appears in the joint. Buyers visit during the process to review samples.
|
8,678+
customers served
|
87%
of orders from repeat customers
|
56%
of orders through referrals
|
89
countries and regions shipped to
|
Buyers and quality engineers visit for sample review, process discussion and supplier audits; the visit is arranged around production so the heading cell and the plating line can be seen on the day the parts run.
Customer group visit – sample review |
Customer group visit – process discussion |
Customer group visit – factory tour |
Customer visit – project kick-off |
Danish customer – drawing review |
Industry exhibition – meeting customers |
Phillips Self Tapping Screws by Head Shape
How the head form changes the joint on a self tapping screw.
|
|
|
Self Tapping Washer Head Screws
The pan washer head self tapping version.
|
|
|
|
|
A forming thread displaces material toward the head. On thin sheet that material has nowhere to go and lifts into a rim.
The head diameter and the driving torque. A larger bearing face spreads the pull, and a cross slips before the material is worked further.
On thin or soft panels a washer head or a plain washer is often the simpler answer than a larger pan head.
On a self tapping screw the cross is the torque limit. A recess that holds the bit badly removes that protection.
It is hard and bright, so the cross keeps its depth and the bearing face stays flat on visible hardware.
Head diameter and height, recess, thread and point, length, finish, and the material and thickness it enters.
How a pan head screw project runs from drawing to repeat delivery:
|
1
Send the drawing and the material
|
→ |
2
Head, recess and thread agreed
|
→ |
3
First article driven into the material
|
→ |
4
Batch production and repeat orders
|
Each step is confirmed with you before the next one starts; the drawing revision from the first article is what repeat orders are checked against.
For a quotation, send the drawing with the head diameter and height, recess, thread and point, length, finish, and the material and thickness it enters.
|
Head diameter
|
Head height
|
Recess
|
|
Thread
|
Length
|
Material
|
Sending a drawing? The form below does not take attachments. Email the PDF, DXF or STEP file to sst@szsst88.com with the part name and quantity in the subject line – the drawing is reviewed and a quotation follows.
