We make Allen head screws in stainless steel with a cylindrical head and a hex socket, quoted with socket size, thread and engagement to the drawing. A socket does not slip, so the joint takes the preload the tool applies, and the first article is tightened with your key and torque setting.

Watch the factory video·Email sst@szsst88.com

ISO 9001:2015 · Manufacturing since 1998 · 8,678+ customers · 89 countries and regions

Made to order – there is no stock catalogue. Each part is produced to your drawing, and production starts after drawing review and first-article approval.

What Allen Head Screws Are

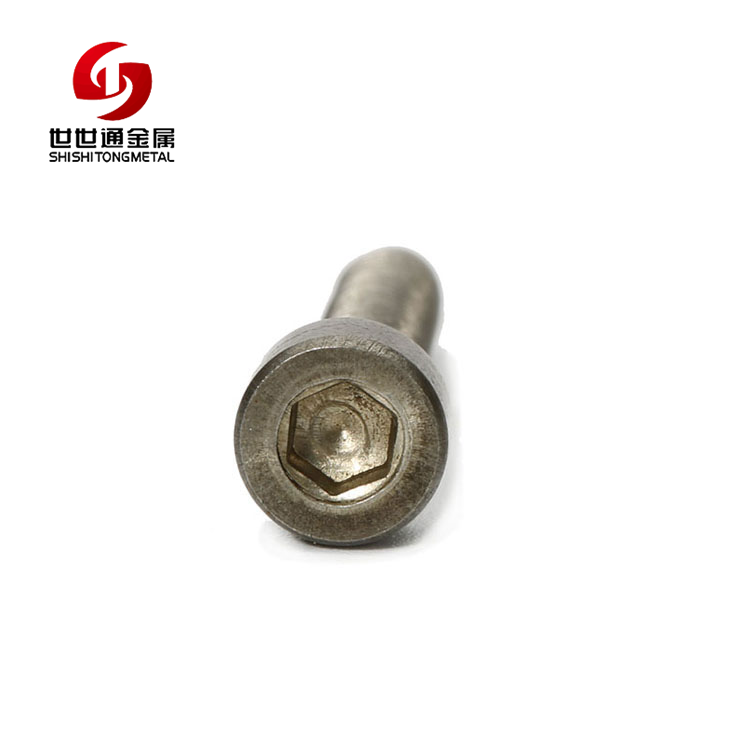

Allen head screws are socket head cap screws driven with a hex key, with a cylindrical head and a hexagon cut inside it. The part recorded here is stainless steel left plain, quoted in metric sizes from M1 upward with the length made to the drawing.

Socket head. A cylindrical head with a hexagon inside, so the key drives on the axis rather than from the side.

Defined bearing face. A flat underside that seats in a counterbore and spreads the clamp.

Machine thread. A thread that engages a tapped hole or a nut over a defined length.

They are used wherever a joint has to be tightened to a set preload rather than to a feel, on equipment and instruments built to metric hardware. The same family covers everything from a 3 mm cover screw to a 10 mm frame bolt, so the drawing has to state the size and the engagement rather than the name.

A Socket Does Not Slip, So the Torque Has to Be Set

The hexagon in an Allen head screw does not climb out the way a cross recess does. That is the property everything else follows from: the drive transfers torque cleanly to the thread, so whatever the tool applies reaches the joint. On a cross recess the bit slips at a certain point and protects the thread by accident; on a socket head there is no such limit, and the limit has to come from the tool.

That is a strength and a risk at the same time. The strength is control: a torque wrench on a hex key or a torque-limited driver can set a preload repeatably, which is what a structural or instrument joint needs. The risk is over-tightening: without a set limit, a strong hand on a long key can pull a thread past its elastic range, and the failure appears later as a loose joint rather than as a stripped thread at the time.

The second factor is engagement. A socket head screw usually engages one diameter or a little more of thread, and the load it can take depends on that engagement rather than on the head. On a thin plate the engagement is short, and the screw then fails by pulling the thread out rather than by breaking; that is a joint design issue, not a screw fault.

The third is the bearing face. The head seats on the floor of a counterbore or on a washer face, and the area of that face sets the pressure on the part. On a soft or thin part the pressure matters more than the torque, because the face can embed before the thread is loaded.

And the fourth is the material. Stainless socket head screws are strong and do not rust, but stainless against stainless galls: the thread can seize before it reaches the preload, and then the torque reading means nothing. A lubricant or a controlled thread fit is what makes a stainless joint repeatable.

Head, Socket, Thread and Engagement

The part is quoted to the drawing with the head, the socket, the thread and the engagement stated separately. Custom lengths up to 2,000 mm, subject to DFM review after drawing submission. The quotation for Allen head screws carries the head diameter and height, the socket size and depth, the thread size and length, and the material it engages.

The socket size is fixed by the head diameter, and it is the feature that decides whether the joint can be tightened to its stated torque. A key that is too small for the socket is worse than useless on a stainless part: it rounds the hexagon and the screw cannot be removed.

The head height sets how much material is around the socket and how deep the hexagon can be cut. On a low head the socket takes most of the available section, and the head then fails before the thread does.

The engagement length is a customer dimension. It is written as a thread depth in the tapped part, and it is what the joint’s strength depends on more than the screw’s length does.

What Allen Head Screws Give and Costs

Four properties decide Allen head screws, and each one carries a cost:

The value is a joint that can be set rather than felt. A torque setting on a socket head screw is meaningful, because the key does not slip; the same setting on a cross recess is only an upper bound.

On Allen head screws the cost is that the setting has to exist. Where a socket head is driven by hand without a torque tool, the joint is as uncontrolled as any other, and on a stainless thread it may also seize before it is tight.

Plain Stainless on a Socket Head

The recorded finish is plain stainless steel. On a socket head that keeps the hexagon at its cut size and the bearing face flat, and it avoids a plate that would sit inside the socket where the key has to fit.

Surface Options for Allen Head Screws

Inside the socket the plate is the problem: a layer a few microns thick reduces the effective across-flats, and a key that fitted before plating may not enter afterwards. Where a plated socket head is used, the socket is checked with the key in the plated state.

On stainless parts a dry film lubricant is often the more useful treatment than a coating. It does not change the socket, and it reduces the galling that can seize the thread before the joint reaches its preload.

Where Allen Head Screws Are Used

Three assemblies where the preload has to be known:

Why Shi Shi Tong for Allen Head Screws

Four reasons that matter on a part where the torque has to be set rather than felt, each tied to something the drawing or the first article proves. All four show in the sample.

How Allen Head Screws Are Made

These screws are turned or formed from stainless bar and wire, with the cylindrical head formed and faced, the hexagon broached, and the thread cut behind the head; the parts are cleaned, passivated and inspected. The first piece of every run is measured on head diameter and height, socket across flats and depth, thread, and length.

The socket is the operation that limits the head. It is broached or milled after the head is faced, and the depth has to leave enough material under the hexagon for the head to take the torque the key will apply. A socket cut too deep is a head that splits or rounds out; one cut too shallow stops the key from engaging over its length.

The head face is finished square to the thread so the screw bears flat on the counterbore floor. On a socket head that face is the bearing surface, and a face that is out of square loads one side and leaves the joint rocking.

The thread is cut rather than rolled on stainless parts, so the crest stays clean and the major diameter stays predictable. The parts are then passivated, and every batch is checked with a key in the socket, since the fit is what the assembly depends on.

Inspection: Socket, Head Face and Thread

What decides whether Allen head screws pass is the socket, the head face and the thread. The inspection agreement covers those, and the criteria come from the drawing.

Socket and head on the projector	Thread and start checked
Material checked	Salt-spray testing where plated

The socket is measured across flats and for depth, and checked with the key on a sample from each batch. A socket that measures right but will not hold the key is usually a burr at a corner, and one that lets the key rock is usually too deep.

The head is checked for diameter, height and flatness of the bearing face, and for the transition into the shank. On a part that is tightened to a torque, that transition is where the head bends first.

The thread is gauged and the start checked. A sample is driven to the stated torque into a tapped test block to confirm that the joint reaches its preload without galling, which is the property a stainless socket head screw is bought for.

Certificates and Material Documentation

Every batch of Allen head screws is traceable to the bar or wire it was made from and to the passivation lot that finished it. The grade and heat number appear on the material certificate supplied with the parts, and the dimensional results are recorded against the drawing revision.

ISO 9001:2015	RoHS test report
Registered trademark	Patent: security screw and driver

With each shipment we supply the material certificate, the inspection record for the dimensions on the drawing, including the socket and head, and the passivation record. The records carry the drawing revision and the batch number, so a repeat order of Allen head screws takes the same torque.

Customers and Projects

More than 8,678 customers in 89 countries and regions have ordered from Shi Shi Tong; 87% of orders come from repeat customers and 56% through referrals. Most projects follow the same route: drawing review, first-article approval, then batches checked against that sample. On a socket head part the first article is tightened with the customer’s key and torque tool, because the joint only exists once it has been set. Buyers visit during the process to review samples.

Repeat orders of Allen head screws are checked against the same first article, so the torque that was proved once is reproduced. Buyers and quality engineers visit for sample review, process discussion and supplier audits; the visit is arranged around production so the machining cell and the inspection bench can be seen on the day the parts run.
