Type:ultra thin head screws
Materials:Stainless steel
Surface treatment:Plain
Head Type:ultra thin head
Drive type:Phillips
Number:1668
This stainless steel machine screw uses a low-profile Phillips head and a full machine thread, supplied plain. It is intended for designs where the head projection must fit within a limited assembly envelope — inside covers, beside moving parts, or where surfaces must stay close to flush. The final head diameter, recess geometry and thread dimensions are established from the part drawing.
|
Material
Stainless steel, plain (natural)
|
Head
Ultra thin head; dk and k per drawing
|
Drive
Phillips
|
|
Thread
Machine thread; size and class per drawing
|
Production
Single-die cold heading
|
Finish
Plain (natural, cleaned)
|
Send Your Drawing for DFM Review
A thin head and a Phillips recess pull in opposite directions: the recess needs depth, and the head has little material to give. Everything else — head diameter, thread size, length — follows the assembly. Getting a thin-head screw right is mostly about budgeting the little height the head has between the bearing face and the recess bottom.

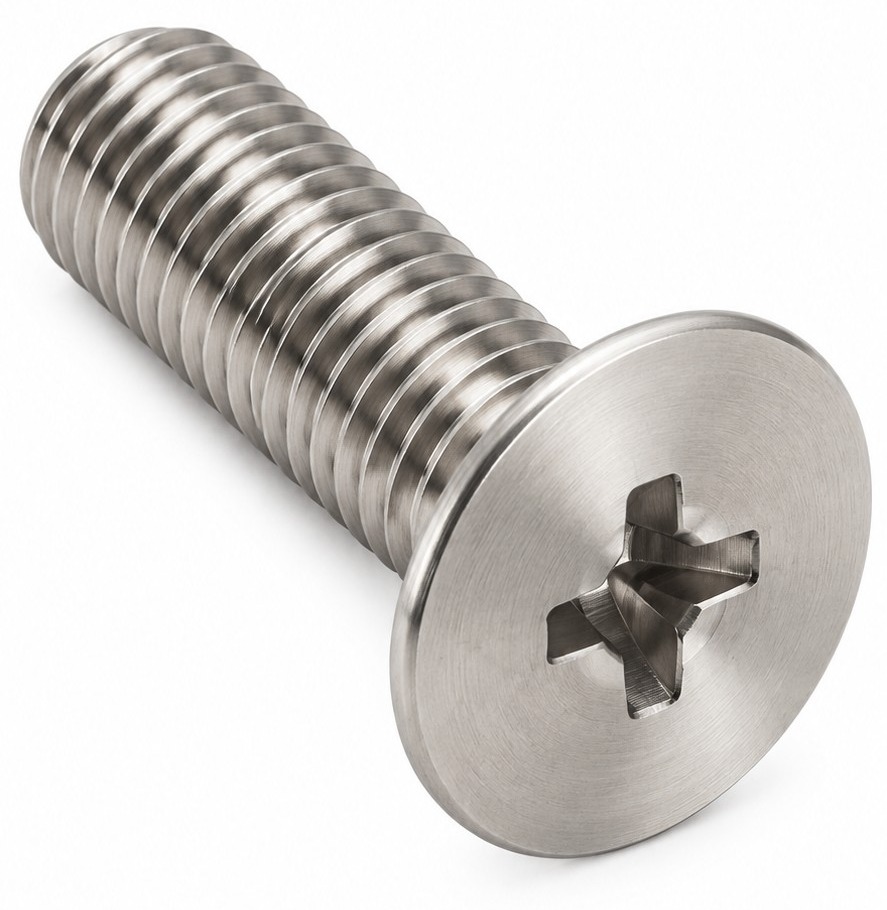

Ultra-thin head Phillips screws — per drawing
Ultra-thin head, Phillips drive |
Phillips recess detail |
Plain stainless finish |
Show the maximum permitted projection above the mounting surface and the radial clearance around the head, and include nearby parts — a hinge, a moving element or a mating cover. Where the head must sit in a counterbore, the recess diameter and depth are stated together with the head so the screw seats as intended.
The Phillips recess consumes head material. Recess size and depth are dimensioned against the head thickness so enough material remains under the recess for the driving torque, and the intended driver is checked against the finished recess. Where the head is unusually thin, the drawing states the minimum remaining material under the recess rather than leaving it to the standard recess form.
The screw is supplied in stainless steel in the plain (natural, cleaned) condition, with no coating over the head or thread. The grade is stated on the drawing together with any documentation required for the order.
Threads are produced to the drawing, typically 6g for external metric threads and verified with GO/NO-GO gauges. The head, recess and thread share one axis, so head-to-thread alignment comes from the forming operation; the drawing defines the runout requirement where the head must sit visually true.
The thin head and its Phillips recess are formed in a single-die cold-heading operation; the thread is rolled, and the parts are cleaned for the natural finish before inspection and packing.
|
1
Wire verification
|
→ |
2
Single-die cold heading (thin head + recess)
|
→ |
3
Thread rolling
|
→ |
4
Clean (natural finish)
|
→ |
5
Inspection
|
→ |
6
Packing
|
Single-die route — recess depth and remaining head material are controlled in heading.
Production equipment at Shi Shi Tong
Production area at Shi Shi Tong, Shenzhen
Forming, thread rolling, machining and inspection operate in one workshop in Shenzhen, supporting the route defined for each drawing. See our factory.
The inspection agreement covers the head diameter and thickness, the recess verified with the intended driver, and thread gauging. Material remaining under the recess is checked on the approved sample, and records are kept so repeat orders can be compared batch to batch.
Thread gauging with GO/NO-GO gauges |
Thread profile and dimensions on an optical projector |
Hardness testing on a Rockwell hardness tester |
In-house salt-spray testing for selected finishes |
Dimensional checks, thread gauges, hardness and torque testing are performed against the approved drawing, with records kept for repeat batches. Selected finishes are supported by in-house salt-spray testing. View certificates and sample reports.
Request documentation for the stainless grade together with any inspection records agreed for the order. We are ISO 9001:2015 certified for the design and production of screws; our certificates and sample test reports are published on the quality documentation page.
ISO 9001:2015 |
RoHS test report (stainless steel) |
Registered trademark |
Patent: security screw and driver |
Certificates and sample test reports are published in full on the quality documentation page.
Thin covers, panels beside moving parts and nested assemblies where the head projection must stay within a strict envelope. The available head height, radial clearance and driver access are agreed on the drawing, and the recess is confirmed against the intended driver on the sample.

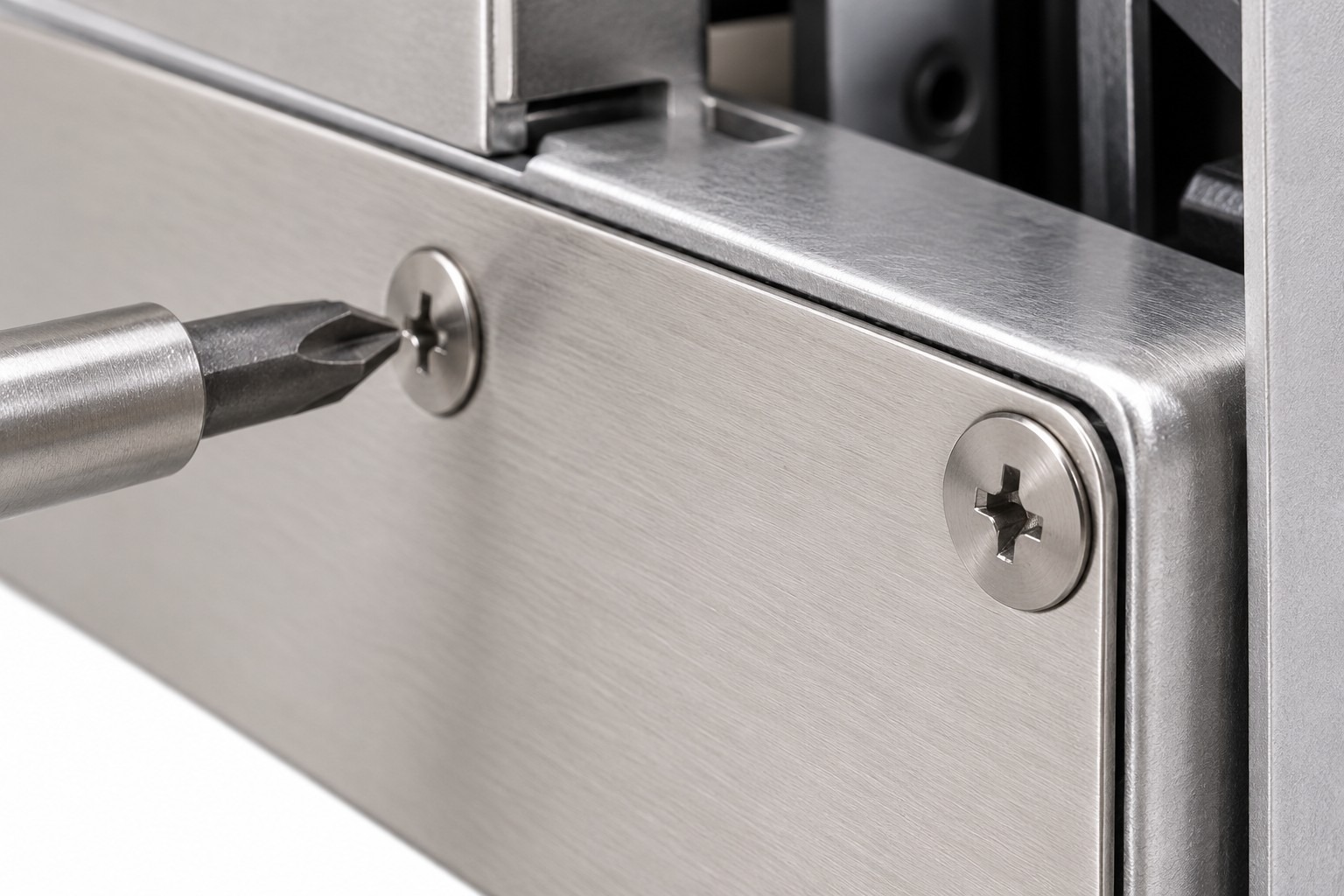

Thin-head screws in a restricted envelope
That is a trade-off defined on the drawing: the recess needs depth and the head must keep enough material under it for driving torque. The minimum remaining material is stated per design.
Phillips. Recess size and depth are dimensioned against the head thickness, and the recess is checked with the intended driver.
To the drawing, typically 6g for external metric threads, verified with GO/NO-GO gauges.
The counterbore diameter and depth are stated together with the head so the screw seats as intended; the surrounding geometry is shown on the drawing.
Stainless steel, plain (natural, cleaned), with the grade stated on the drawing.
The drawing with head envelope, recess, thread and length, the available clearance, quantity and any inspection criteria.
Shi Shi Tong has manufactured custom fasteners since 1998, including thin-head screws produced on single-die headers. Engineering support covers drawing review, sample approval and stable production.
