Custom Grey Low-Profile Phillips Screws

Custom stainless steel low-profile screws combine a broad flat bearing head, a Phillips recess and a vacuum-grey finish for drawing-defined enclosure fasteners. Head clearance, receiving-thread engagement and the accepted grey appearance are reviewed together before production.

What These Low-Profile Screws Are

A low-profile screw is a threaded fastener that secures a component while keeping its head close to the outside surface.

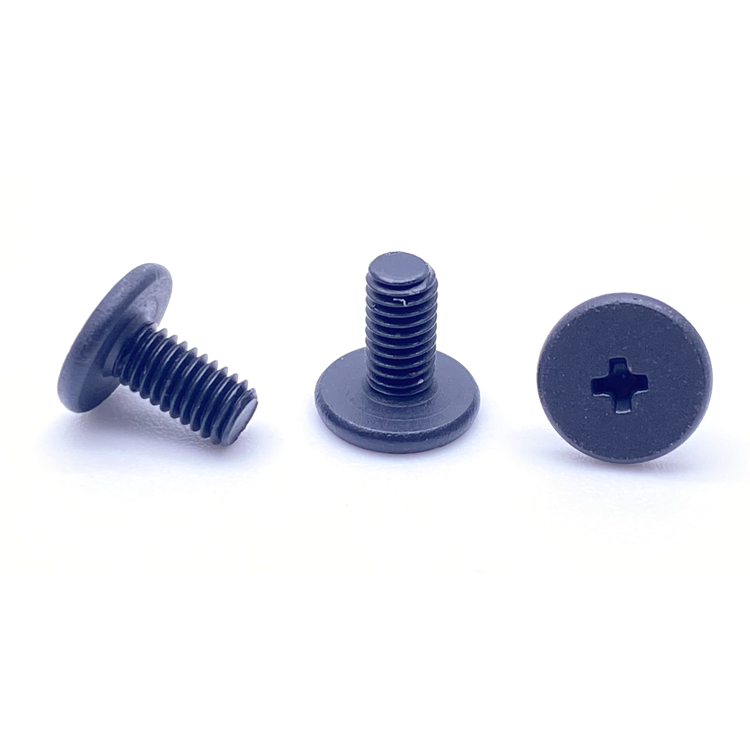

Flat bearing face. This screw has a broad, shallow disk head that seats on a flat cover. It is not a countersunk screw: the underside bears against the panel rather than a conical recess. This distinction matters when the enclosure drawing specifies a flat clearance hole.

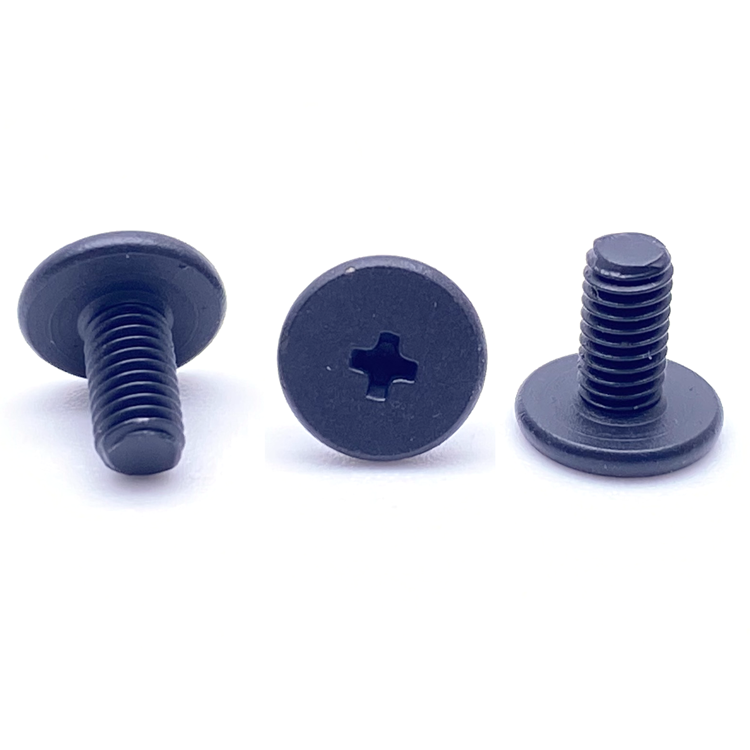

Phillips drive. The cross recess gives the assembly tool access from above the head. Recess size, depth and remaining head material must be considered together, especially when the permitted projection above a finished cover is small.

Machine thread. These low-profile screws engage a matching tapped hole, insert or nut. They are not intended to create a thread in an unprepared metal panel, and their blunt ends should not be treated as drilling points.

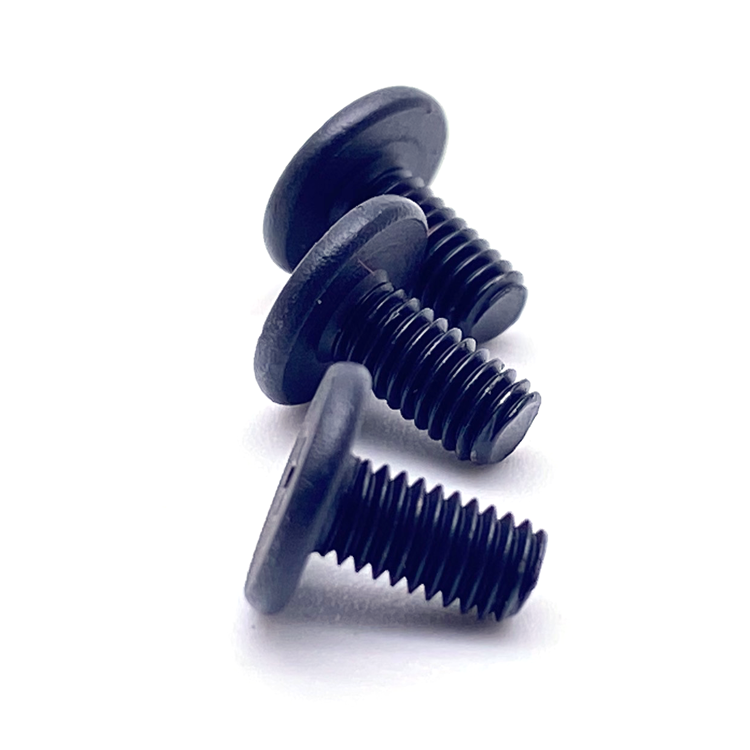

Stainless steel and grey appearance. The product combines stainless steel with a vacuum-grey surface finish. The stainless grade, thread designation and colour acceptance reference are established for the order. The photograph defines the product style, while the drawing defines the dimensions and acceptance requirements that appearance alone cannot establish.

Head, Recess and Receiving-Thread Relationships

For these low-profile screws, the head diameter, head thickness and Phillips recess form one connected design problem. Reducing the head height creates more clearance outside the enclosure, but also leaves less depth for the recess. Increasing recess depth without reviewing the remaining material can weaken the head locally. We therefore review the drive geometry together with the bearing face rather than approving each dimension in isolation.

The head underside should meet the panel squarely. A burr around the clearance hole or an uneven seating surface can leave the head tilted even when the screw itself matches its drawing. On a visible grey cover, that condition can produce uneven contact marks as well as an inconsistent appearance.

Under an unsuitable tightening condition, the recess may be damaged before the joint develops its intended clamp load; a weak receiving thread can instead strip first. The likely limiting feature depends on head geometry, bit engagement, material and the mating component. We do not assign a universal installation torque from the product photograph.

For stainless low-profile screws, identify the mating material and any specified lubrication or assembly treatment. The customer’s approved joint design remains the basis for installation and service requirements.

Custom Dimensions and Tolerances

These low-profile screws are made to a drawing rather than a fixed catalogue size. Define dimensions from the functional surfaces: the underside of the head is the reference for under-head length, while the visible top surface establishes the allowable projection above the cover.

Head height becomes critical where another part passes over the installed screw. Under-head length becomes critical where a blind hole leaves limited clearance beyond the engaged thread. Provide both the panel thickness and receiving-hole depth so that a short-looking screw is not selected only by its external appearance.

Apply tighter limits to dimensions that affect the joint; a uniform tight tolerance across every surface may add manufacturing and inspection work without improving assembly. Incoming wire size, forming-tool condition and the finishing route influence different features. For custom low-profile screws, we review those influences before confirming the inspection plan and sample dimensions.

Four Trade-Offs to Resolve Before Ordering

Lower projection versus drive engagement. Low-profile screws help keep the outside of an enclosure compact. The price of reducing the head height is less space for the drive recess. Specify the available tool access and intended assembly method so the head is not reduced beyond what the recess and material can support.

Wider seating versus available space. A broad head distributes contact over a wider area than a narrow head of otherwise similar geometry. It also needs clearance from panel edges, adjacent screws and housing ribs. The usable bearing area depends on the hole and seating surface, not simply the outside head diameter.

Grey appearance versus acceptance detail. Matching a dark housing can improve visual consistency, but “grey” alone is not an adequate colour specification. Approve a physical reference, viewing conditions and the areas where contact marks are acceptable. A colour match does not establish corrosion performance.

Short thread versus blind-hole clearance. A compact screw can avoid interference with internal components, but shortening it also reduces available engagement. Determine engagement and bottom clearance from the assembled stack. We help translate those requirements into dimensions for low-profile screws; the final joint capacity depends on the complete assembly.

Vacuum-Grey Finish and Appearance Control

Finish Selection and Acceptance Comparison

The finish name does not establish a particular coating chemistry, thickness or performance class. For these low-profile screws, specify the required appearance and any functional surface requirements together. A change to the finish must be reviewed as a change to the part specification, not treated as an automatic substitute.

Surface treatment can affect thread and drive fit. The inspection plan should identify which checks apply to the finished part, including whether the selected driver still seats correctly and whether the thread meets the agreed acceptance criteria after treatment.

If corrosion testing is required, agree the method, exposure duration and acceptance criteria for the actual material and finish. A grey photograph cannot establish a salt-spray rating. For visible low-profile screws, compare samples under agreed lighting, review head and recess coverage, and retain the accepted colour reference for repeat orders.

Application Problems These Low-Profile Screws Can Address

The following are application concepts for design review. Suitability depends on the complete joint, drawing and operating conditions.

Industrial Vision Camera Enclosures

Where it sits: A removable side cover on a custom camera or industrial sensor housing, where head projection and visible colour must fit the enclosure design.

When it goes wrong: A proud or tilted head can interfere with a neighbouring bracket; a damaged recess can complicate later service access.

Why it happens: The head envelope, seating surface and tool access were not reviewed together, or a burr prevents full contact.

What we control: We review head height, diameter, recess geometry and finished appearance against the drawing. The equipment designer confirms mounting clearance and the complete joint.

Laboratory Instrument Service Panels

Where it sits: The removable exterior service panel of a laboratory sample-handling or analytical instrument with a specified stainless and grey fastener design.

When it goes wrong: Repeated access can reveal recess damage, colour mismatch or inconsistent seating across the cover.

Why it happens: Driver engagement, surface acceptance and the maintenance assembly method were not included in sample evaluation.

What we control: We establish the head and drive dimensions, review the finish reference and agree relevant finished-part checks. The customer evaluates the panel assembly under its service conditions.

Why Shi Shi Tong for Custom Low-Profile Screws

Manufacturing Low-Profile Screws to the Drawing

This screw uses a single-die cold-heading route. The forming setup must establish a broad, shallow head while preserving the material around the Phillips recess. Before a production run is agreed, the proposed dimensions and material are reviewed for manufacturability; changing the head diameter or height may change that assessment.

The thread and surface requirements are then considered against the formed part. For these low-profile screws, the inspection sequence should include the features that matter after finishing, rather than relying only on an unfinished sample. Trial parts allow the customer to evaluate the actual panel, receiving thread and driver together. The factory views below introduce the production floor, equipment and operator setup. For your order, the approved drawing and sample establish the manufacturing and inspection requirements.

Inspection for Head Clearance, Thread Fit and Finish

For low-profile screws, a dimension can pass on its own while the assembly still fails. A head may exceed the available cover clearance; a screw can bottom in a blind hole before the cover is clamped; an unsuitable driver may damage the recess. The drawing and inspection plan should therefore identify the functional dimensions and the checks that apply to the finished part.

We agree the thread acceptance, head and length measurements, appearance reference and required documentation before production. Thread gauges and optical measurement support dimensional checks. Hardness and salt-spray testing are selected only where the material, finish and order require them, using agreed methods and criteria. The agreed inspection plan identifies which measurements and tests apply to your low-profile screws and which results are required with the order.

Certificates and Order Documentation

Supplier credentials and part acceptance answer different questions. ISO 9001 concerns the quality management system; a material or test report concerns the sample, material or scope stated on that document. For custom low-profile screws, identify the documents your purchase order needs before production so their scope matches the agreed material and finish.

Review the certificate scope, report identification and material specification against your purchasing requirements. For a grey-finished stainless part, the requested evidence should cover the specified steel grade and surface treatment. Where compliance evidence is required, we review the applicable document, sample identification and requested scope with you. Drawing-based dimensional acceptance remains part of the order review for these low-profile screws.











Customers and Technical Discussions

Shi Shi Tong serves customers across 89 countries and regions, with repeat orders and referrals supporting long-term working relationships. Customer visits and technical discussions provide opportunities to review drawings, compare samples and discuss manufacturing requirements. For your low-profile screws, bring the mating-part details and acceptance priorities into that discussion. A shared understanding of clearance, driver access and appearance is more useful than choosing a screw from a photograph alone.

Related Products and Technical Guides

Compare alternative head and drive arrangements when the enclosure requires a different clearance, bearing area or assembly tool. These are separate product designs, not interchangeable versions of this screw.

Technical Guides

Products

Low-Profile Screws: Questions Before Ordering

Order Custom Low-Profile Screws

1. Send the drawing and assembly priorities. Include the thread, under-head length, head envelope, Phillips recess, stainless grade, grey reference and quantity. Explain any cover clearance or blind-hole constraint.
2. Agree the manufacturing and inspection requirements. We review the proposed combination and clarify the dimensions, surface acceptance and documents that affect the quotation.
3. Evaluate the sample in your assembly. Check seating, driver access, thread engagement, bottom clearance and appearance with the actual mating parts before approving the design.
4. Confirm production and repeat-order requirements. Use the accepted drawing revision and finish reference as the basis for the order. Identify any design or service-condition changes when reordering low-profile screws.
