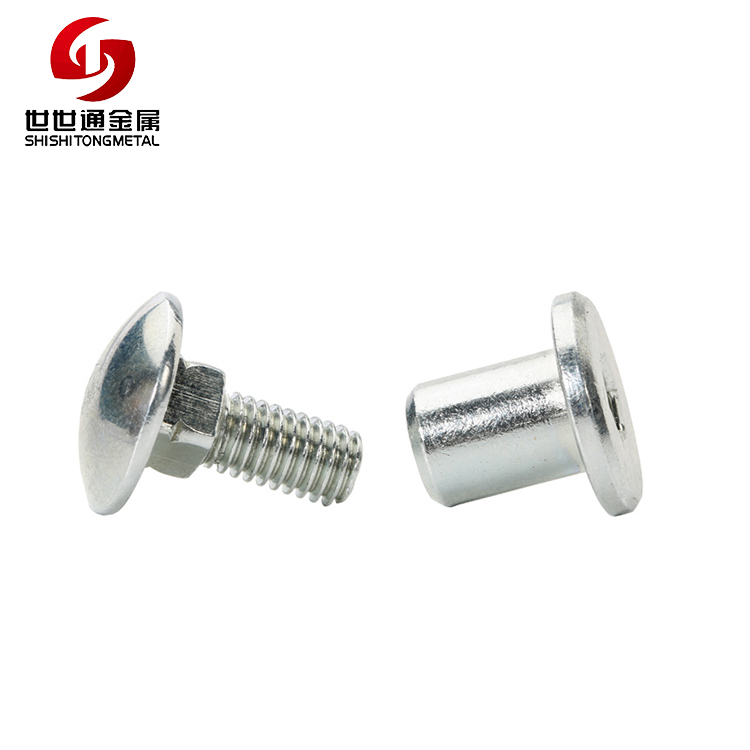

Type:Chicago Screws
Materials:Steel
Surface treatment:Eco Nickel Plated
Size:M1 M2 M3 M4 M5 M6 M7 M8 M9 M10
We manufacture steel screws in the 10 recorded sizes M1 to M10, cold headed, thread rolled with eco nickel plating applied after rolling, and inspected against the drawing, for machine frames, control cabinets and pump and motor mounts. Head diameter, recess depth, thread length and surface finish are made to your drawing, and the driver bit match is reviewed before production.
Shi Shi Tong supplies steel screw screws on a made-to-order basis. For this item the recorded configuration is Eco Nickel Plated finish, , a machine thread, right hand direction and metric measurement. Any requirement outside the recorded configuration is reviewed against the drawing before the batch runs.
The table below is the specification recorded for this screw, not a catalogue of every size the factory can produce. Where a project needs a different head, drive, thread or finish, the part is reviewed as a drawing-based item.
The recess or drive size is matched to the tool used on your line. State the driver size or the torque target on the drawing so the head and the drive are reviewed together with the head diameter.
A machine thread engages a pre-tapped hole or a nut rather than cutting its own path into the material. The mating thread has to be prepared to the same size and class, so the screw and the tapped hole are specified together.
Nickel plating gives a hard, bright surface with good wear resistance and a uniform appearance.
Packing is recorded as plastic bag + carton. Parts are bagged before they go into the carton so the thread and the head are protected in transit.
The joints below are where these screws actually fail when the geometry is loose, so each paragraph names the failure, what it costs and the dimension we hold:
Industrial machinery frames. On screws joining plates and brackets that are re-torqued at every service, the recess wears and the driver slips, so the joint cannot be re-torqued to spec. The machine is stopped and the fixing is replaced before production resumes, because drive depth and head hardness are not matched to the torque used at service. We control it at the source: drive depth and head hardness are held against the torque target on the drawing.
Electrical cabinets and control panels. On fixings on panels and DIN-rail plates inside cabinets, the screw loosens under vibration from contactors and the plate rattles. The panel is re-opened and the wiring is disturbed, because the bearing face does not sit flat on the plated sheet. We control it at the source: head squareness and the bearing diameter are held so the clamp load lands on the sheet.
Pump and motor mounts. On screws holding mounts that see continuous vibration, the thread frets and the preload decays, so the mount works loose. The coupling is realigned and the motor is shimmed again, because thread fit and engagement length are too loose for the vibration level. We control it at the source: thread fit class and engagement length are fixed on the drawing against the mount thickness.
The size field recorded for this item is M1 M2 M3 M4 M5 M6 M7 M8 M9 M10. Sizes inside that range are quoted against the drawing, because the head diameter, the head height and the length are set per part rather than taken from one stock list.
Where a length or a diameter outside the recorded range is needed, the part is treated as a drawing-based item and the tooling is reviewed before quoting.
Wire and bar are bought against the mill certificate: grade, heat number and standard are checked before forming, and the material report is kept with the production record.
Manufacturing since 1998. Parts are produced to your drawing or sample; overall range M0.8-M16 diameter and 0.4-2000 mm length, each subject to material, structure and process review.
A complete production process holds the dimensional tolerances and the appearance of the part; the inspection scope is agreed with the drawing.
Plain and coated finishes are specified per joint so the head and the thread survive repeated driving; where a locking feature is required it is defined on the drawing rather than added at random.
The route is planned from the approved drawing rather than taken from a stock list:
Inspection follows the features that decide whether the screw assembles: the head, the drive, the thread and the surface.
Results are recorded per batch so a repeat order can be compared with the first delivery.
ISO 9001:2015 Quality Management System Certification and an SGS testing report are the two documents stated for this product. Material reports for the raw wire are available with the shipment.
 |
 |
 |
Fasteners are bought by people who have to make a line run again next quarter, so the order history is part of the specification.
|
8,678+
Customers served
|
87%
Repeat orders
|
56%
Referral orders
|
89
Countries and regions
|
Other screws produced to drawing at the same plant:
The material recorded for this item is Steel. The grade is confirmed against the material report kept with the batch.
The recorded surface treatment is Eco Nickel Plated. Where a project specifies a different finish, the finish is agreed on the drawing before the batch runs.
The size field recorded for this item is M1 M2 M3 M4 M5 M6 M7 M8 M9 M10. Head diameter, head height and length are set per part against the drawing rather than taken from one stock list.
Yes. A part outside the recorded configuration is treated as a drawing-based item: the head, the drive, the thread and the finish are reviewed together before quoting.
Send the drawing with the head, the drive, the thread and the finish you need. The reply covers the feasible route, the inspection scope and the lead time for the batch.
