What Are Truss Head Screws? Uses, Benefits, and Customization

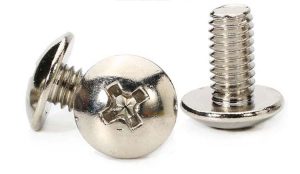

What Is a Truss Head Screw?

A truss head screw is a fastener with a wide, low-profile, rounded head designed to distribute load over a larger surface area. Unlike pan head screws, truss head screws have a flatter and broader head, making them ideal for applications requiring minimal surface damage and enhanced stability. They typically feature a Phillips, slotted, or Torx drive and are available in materials like stainless steel, galvanized steel, or black oxide-coated steel.

Key Features of Truss Head Screws：

1.Wide Head: Spreads pressure to prevent damage to soft materials.

2.Low Profile: Sits close to the surface for a clean, professional look.

3.Versatile Drive Types: Phillips, slotted, or Torx for easy installation.

4.Material Options: Stainless steel for corrosion resistance, galvanized for durability, or black oxide for aesthetics.





What Is the Purpose of a Truss Head Screw?

Truss head screws are used to securely fasten materials while minimizing surface damage and ensuring a low-profile finish. Their wide head reduces the risk of pull-through in soft materials like plastic, thin metal, or wood, making them ideal for applications where aesthetics and structural integrity are critical.





Top 5 Benefits of Truss Head Screws

1.Enhanced Load Distribution: The broad head disperses pressure, preventing cracks or deformation in delicate materials like plastic or thin sheet metal.

2.Aesthetic Appeal: The rounded, low-profile design provides a polished look, perfect for visible applications like furniture or electronics.

3.Versatility: Available in stainless steel, galvanized, or black oxide finishes, they suit diverse environments, from outdoor structures to indoor assemblies.

4.Ease of Installation: Compatible with standard tools (e.g., Phillips or Torx drivers), ensuring quick and secure fastening.

5.Customizability: Manufacturers like Shi Shi Tong offer modified truss head screws tailored to specific project needs, such as unique sizes or coatings.





Common Applications of Truss Head Screws

-Electronics: Securing circuit boards or plastic enclosures without cracking brittle materials.

-Automotive: Fastening interior panels or dashboards where a low-profile head is needed.

-Furniture Manufacturing: Joining wood or laminated panels while minimizing splitting risks.

-Sheet Metal Fabrication: Attaching thin metal sheets with reduced risk of pull-through.







Truss Head Screw vs. Pan Head Screw: What’s the Difference?

Understanding the difference between truss head and pan head screws is crucial for selecting the right fastener. Here’s a side-by-side comparison:

Feature	Truss Head Screw	Pan Head Screw
Head Diameter	Wider (better load distribution)	Smaller (more compact)
Profile Height	Flatter (low-profile)	Slightly domed (higher profile)
Common Uses	Soft materials, electronics, furniture	Woodworking, general-purpose
Drive Types	Phillips, slotted, Torx	Phillips, Torx, square
Pull-Through Risk	Lower (due to wider head)	Higher (smaller contact area)





When to Choose a Truss Head Screw:

-Need a low-profile, aesthetically pleasing fastener.

-Working with soft or thin materials prone to damage.

-Require a wider head to prevent pull-through.



When to Choose a Pan Head Screw:

-Need a general-purpose fastener for wood or plastic.

-Prefer a slightly rounded head for easier driving.

-Working with thicker materials where pull-through is less concerning.





Case Study: Custom Truss Head Screws for a German Automotive Manufacturer

In 2024, a German automotive manufacturer approached Shi Shi Tong to address a challenge with their dashboard assembly line. The client needed a modified truss head screw with a black oxide finish and a specific head diameter to secure plastic panels without cracking them. Standard screws were causing micro-fractures, leading to costly rework.



Shi Shi Tong’s Solution:

1.Designed a custom stainless steel truss head screw with a 12mm head diameter and integrated washer for enhanced load distribution.

2.Applied a black oxide coating for corrosion resistance and a sleek appearance.

3.Provided prototypes within one week, followed by full production after client approval.



Result: Zero panel fractures, 20% faster assembly time, and a 15% cost reduction due to reduced rework.

This case highlights how Shi Shi Tong’s expertise in custom fasteners solves real-world manufacturing challenges.





How to Choose the Right Truss Head Screw?

1.Material: Select stainless steel for rust resistance, galvanized steel for outdoor durability, or black oxide for aesthetics.

2.Size: Ensure the head diameter and thread length match your material thickness.

3.Drive Type: Choose Phillips for standard tools, Torx for high-torque applications, or slotted for traditional setups.

4.Customization: Partner with a manufacturer like Shi Shi Tong for non-standard sizes, coatings, or features like self-locking washers.







Installation Tips

-Pre-Drill Holes: Use a pilot hole for hardwoods or thin metals to prevent splitting or deformation.

-Use Proper Tools: Opt for a low-speed drill or manual screwdriver to avoid over-torquing the screw head.

-Check Alignment: Ensure the screw is perpendicular to the surface for maximum strength.







FAQ



1.What is a truss head screw used for?

Truss head screws are used to fasten soft or thin materials like plastic, sheet metal, or wood, providing a low-profile finish and reducing pull-through risk.

2.How is a truss head screw different from a pan head screw?

A truss head screw has a wider, flatter head for better load distribution, while a pan head screw has a smaller, slightly domed head for general-purpose use.

3.Can truss head screws be customized?

Yes, manufacturers like Shi Shi Tong specialize in custom truss head screws, offering unique sizes, materials, and coatings to meet specific project needs.





Conclusion

Truss head screws are a versatile, reliable choice for manufacturers seeking to balance strength, aesthetics, and material safety. Whether you’re assembling electronics, furniture, or automotive components, their wide, low-profile head ensures secure fastening without compromising your workpiece.

For custom solutions tailored to your project, contact Shi Shi Tong at www.sstls.com to discuss your truss head screw needs today!
